Understanding Investment Casting for Pump Components

When it comes to manufacturing pump components, precision and reliability are non-negotiable. The casting process plays a crucial role in delivering parts that meet stringent industry standards. Among the various casting methods, investment casting stands out for its ability to produce complex, high-quality components with excellent surface finish and dimensional accuracy. In this post, I will walk you through the essentials of investment casting for pump components, explaining how it works, its benefits, and practical examples relevant to your industry needs.

The Casting Process for Pumps: Why Investment Casting Matters

Investment casting, also known as lost-wax casting, is a manufacturing technique that allows you to create intricate metal parts with tight tolerances. This process is particularly valuable for pump components, which often require complex geometries and smooth surfaces to ensure optimal fluid flow and durability.

The process begins with creating a wax pattern that replicates the final component. This pattern is then coated with a ceramic shell, which hardens to form a mould. Once the ceramic mold is ready, the wax is melted away, leaving a cavity into which molten metal is poured. After cooling, the ceramic shell is broken away, revealing the cast metal part.

This method offers several advantages for pump manufacturing:

• Precision: Achieves tight dimensional tolerances, reducing the need for extensive machining.

• Complexity: Produces parts with intricate shapes that are difficult or impossible with other casting methods.

• Surface Finish: Delivers smooth surfaces, improving pump efficiency and reducing wear.

• Material Variety: Supports a wide range of metals and alloys suitable for demanding environments.




By choosing investment casting, you ensure that your pump components meet the high standards required in sectors like nuclear power, chemical processing, and oil & gas.

Ceramic mould for investment casting process

Key Steps in the Casting Process for Pumps

Understanding the detailed steps of investment casting helps you appreciate its precision and reliability. Here’s a breakdown of the process tailored for pump components:

1. Pattern Creation

   A wax pattern is made using injection molding or hand carving. This pattern is an exact replica of the pump part you want to produce.




2. Assembly of Wax Patterns

   Multiple wax patterns can be attached to a central wax gating system, forming a tree-like structure to cast several parts simultaneously.




3. Shell Building

   The wax assembly is dipped repeatedly into a ceramic slurry and coated with fine sand. Each layer hardens, building a thick ceramic shell around the wax.




4. Wax Removal

   The ceramic shell is heated in an autoclave or furnace, melting and draining the wax, leaving a hollow mould.




5. Casting

   Molten metal is poured into the ceramic mould under gravity or vacuum to fill the cavity completely.




6. Cooling and Shell Removal

   After solidification, the ceramic shell is broken away, revealing the raw castings.




7. Finishing

   The cast parts are cut from the gating system, cleaned, heat-treated if necessary, and machined to final specifications.




Each step is critical to ensure the final pump components have the required mechanical properties and dimensional accuracy.

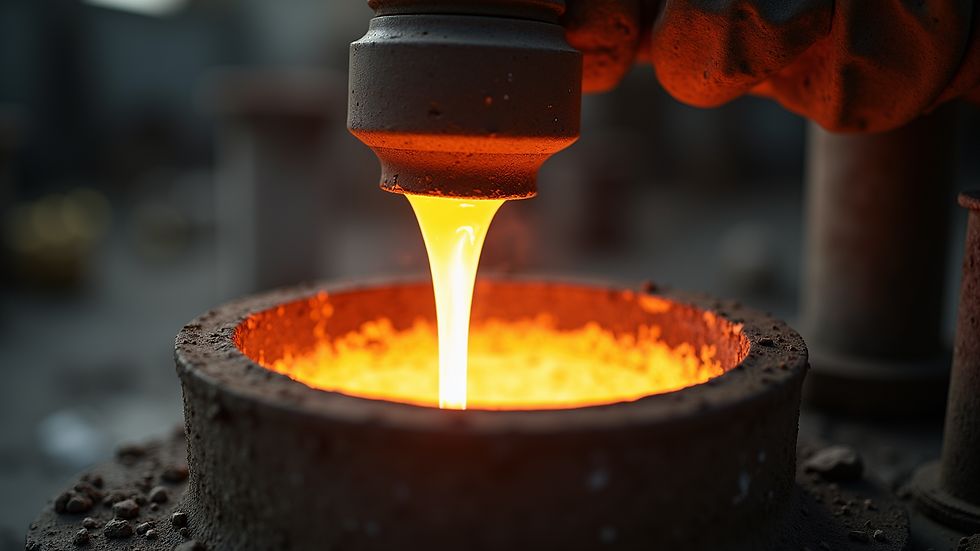

Pouring molten metal into ceramic mould for pump casting

What is an example of investment casting?

A practical example of investment casting in pump manufacturing is the production of impellers. Impellers are central to pump operation, requiring precise aerodynamic shapes to move fluids efficiently. Traditional casting methods may struggle to achieve the complex curves and thin walls needed without defects.

Using investment casting, manufacturers can produce impellers with:

• Thin, uniform walls to reduce weight and improve efficiency.

• Complex blade geometries that optimize fluid flow.

• Smooth surfaces that minimise turbulence and wear.




For instance, in the chemical processing industry, impellers made by investment casting withstand corrosive fluids and high temperatures, ensuring long service life. Similarly, in nuclear power plants, investment cast impellers meet strict quality and safety standards.

This example highlights how investment casting supports the production of critical pump components that perform reliably under demanding conditions.

Benefits of Investment Casting for Pump Components

Choosing investment casting for your pump parts offers several tangible benefits:

• High Accuracy: Achieve dimensional tolerances as tight as ±0.1 mm, reducing post-casting machining.

• Material Efficiency: Minimise waste by casting near-net-shape parts.

• Design Flexibility: Manufacture complex shapes, including hollow sections and thin walls.

• Improved Mechanical Properties: Controlled solidification results in fine grain structures and better strength.

• Surface Quality: Smooth surfaces reduce friction and improve pump efficiency.

• Repeatability: Consistent quality across large production runs.




These advantages translate into cost savings, improved performance, and longer component life. For industries like oil & gas or energy, where downtime is costly, reliable pump components are essential.

If you are looking for trusted suppliers, consider companies specialising in investment casting pumps. They offer certified, high-performance castings tailored to your sector’s requirements.

Practical Recommendations for Selecting Investment Casting Services

When sourcing investment cast pump components, keep these points in mind to ensure you get the best results:

• Certification and Quality Control

Verify that the supplier follows industry standards such as ISO 9001 or AS9100. Quality control measures like X-ray inspection and dimensional testing are crucial.

• Material Expertise

Ensure the foundry can work with the alloys you require, whether stainless steel, nickel-based superalloys, or specialty materials.

• Engineering Support

Look for partners who provide design consultation and prototyping services. Early collaboration can optimise your component design for casting.

• Production Capacity

Confirm the supplier can handle your volume needs, from prototypes to full-scale production.

• Lead Times and Delivery

Reliable delivery schedules are vital for project planning. Choose suppliers with proven track records.

• After-Sales Service

Support for troubleshooting, rework, or future orders adds value to your partnership.

By following these guidelines, you can select a casting partner that aligns with your operational goals and quality expectations.

Investment casting is a proven, reliable method for producing high-quality pump components that meet the demands of critical industries. Its precision, flexibility, and material compatibility make it an ideal choice for manufacturing parts that require complex shapes and superior performance. Whether you need impellers, housings, or other pump parts, understanding the casting process helps you make informed decisions and partner with the right suppliers.

I encourage you to explore the capabilities of specialised foundries offering investment casting pumps to benefit from advanced engineering support and certified quality. This approach will help you secure components that contribute to the efficiency, safety, and longevity of your fluid handling systems.
